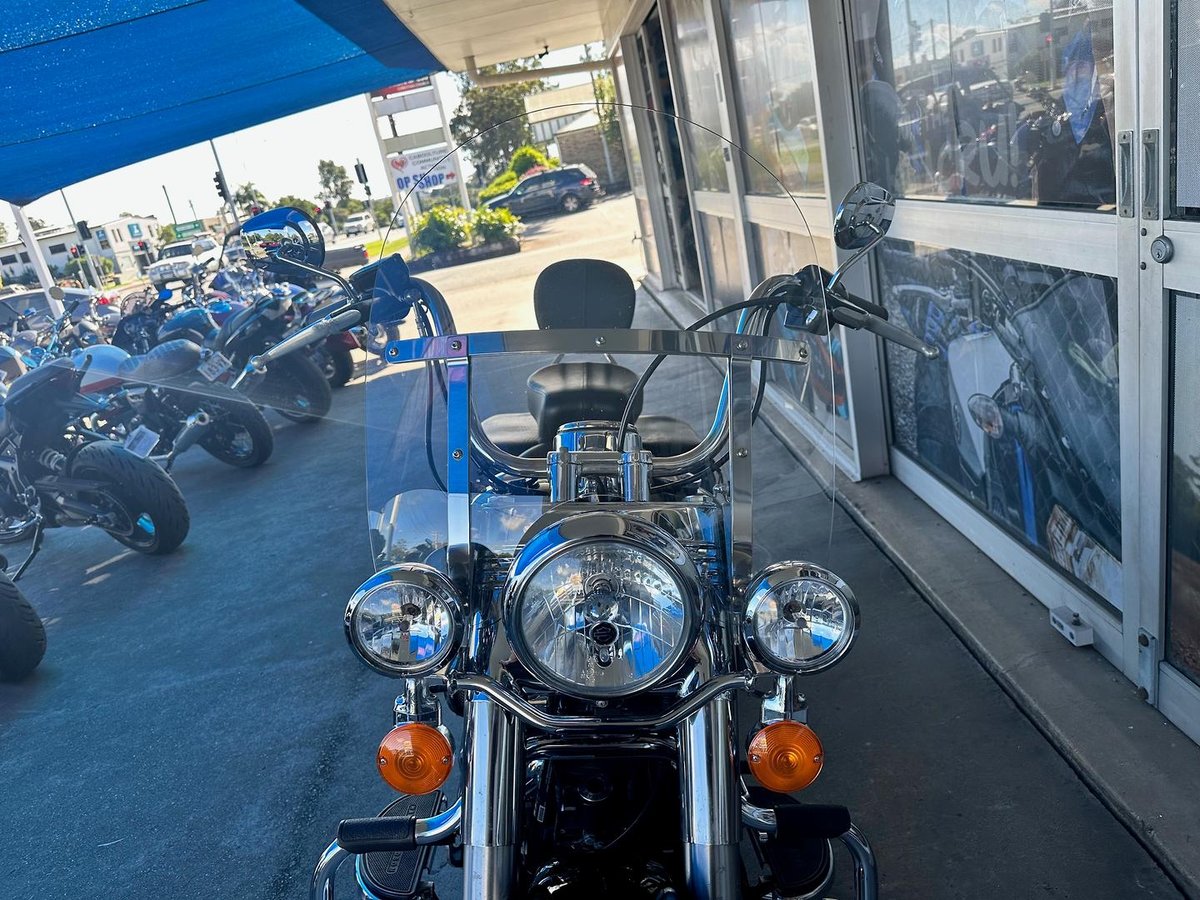

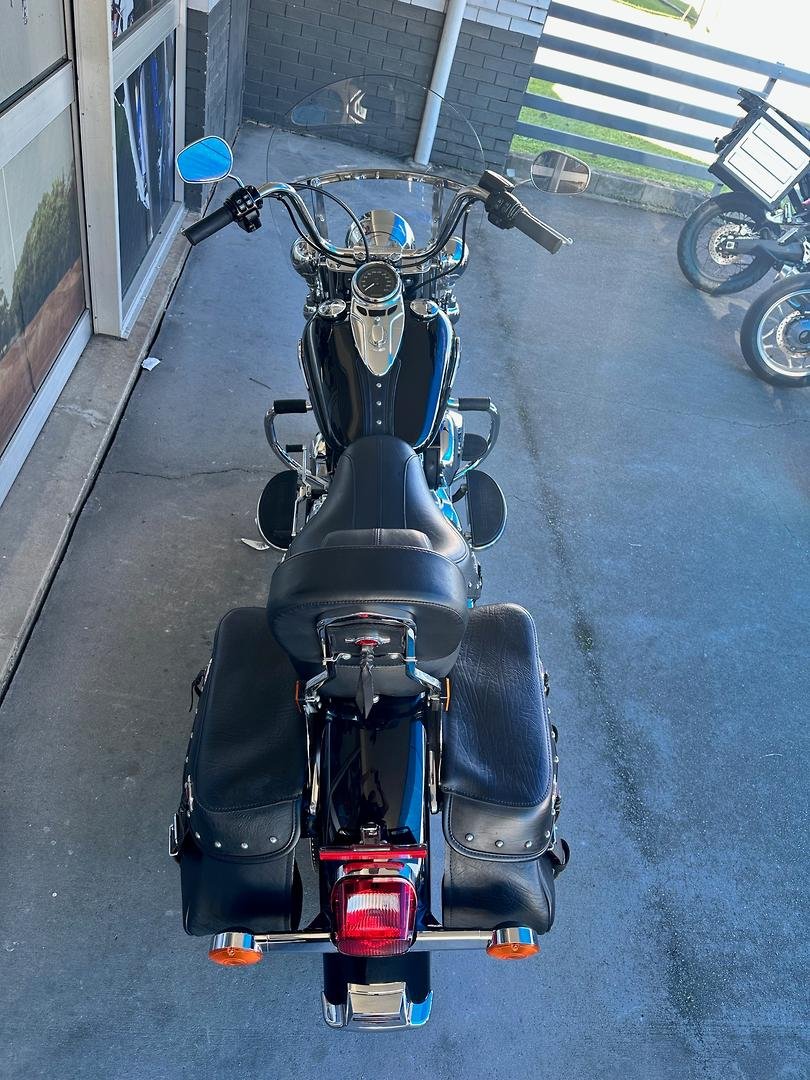

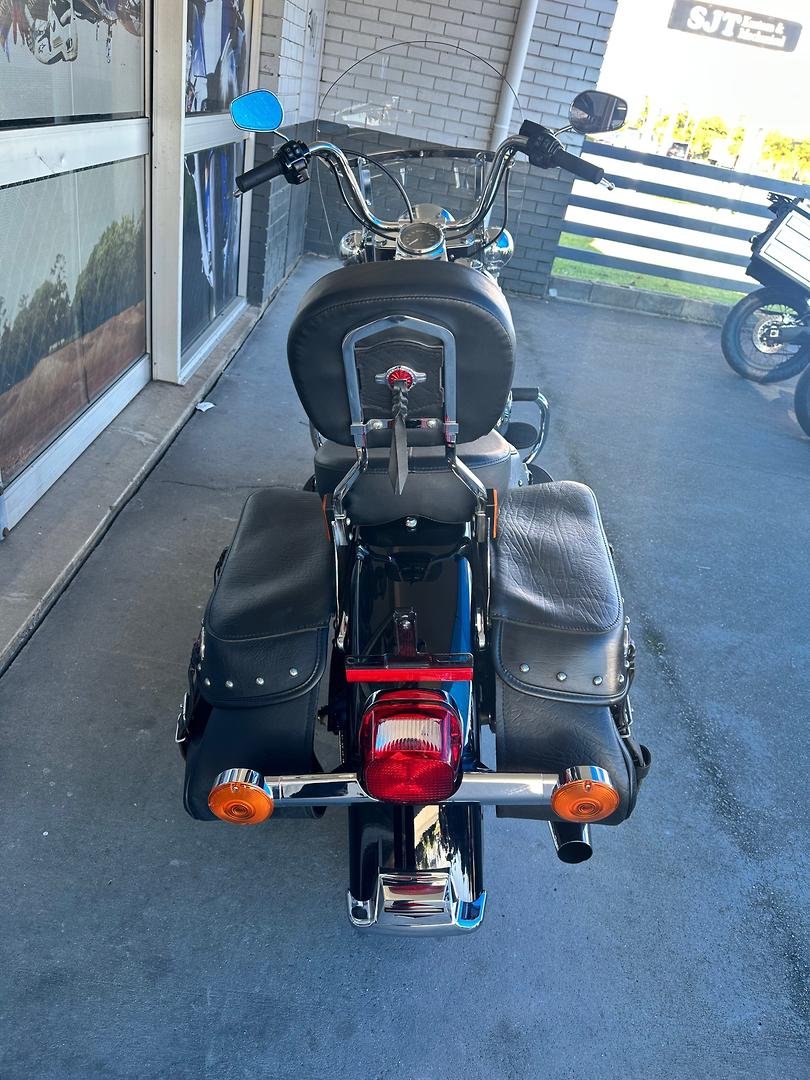

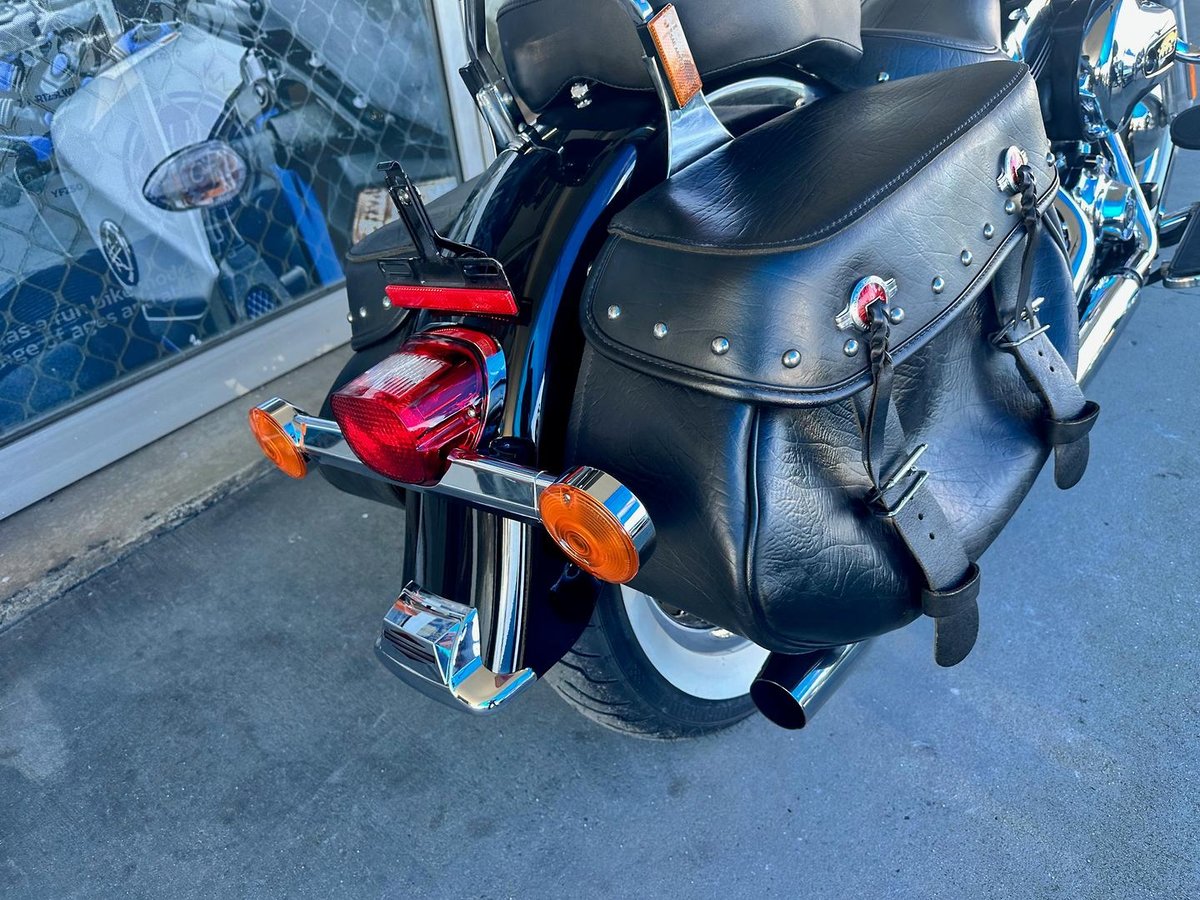

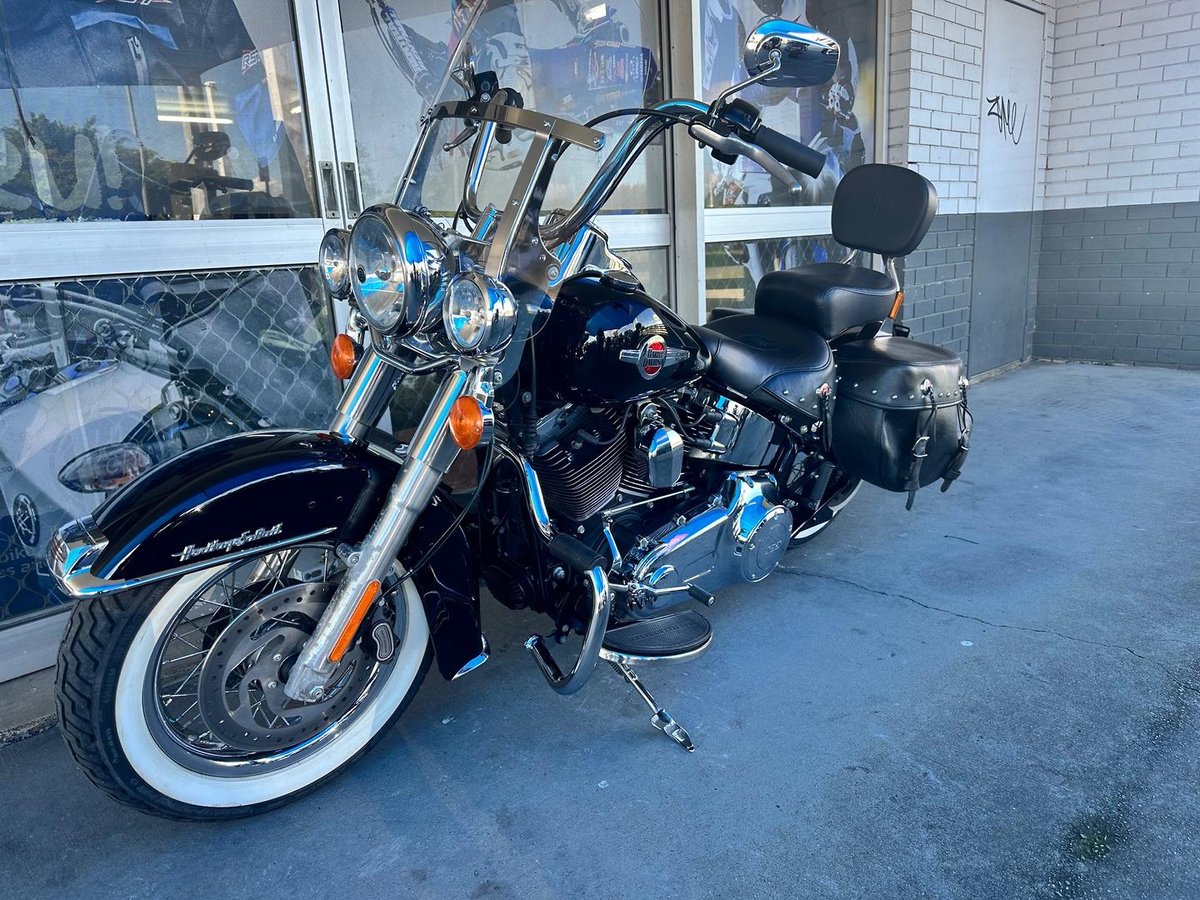

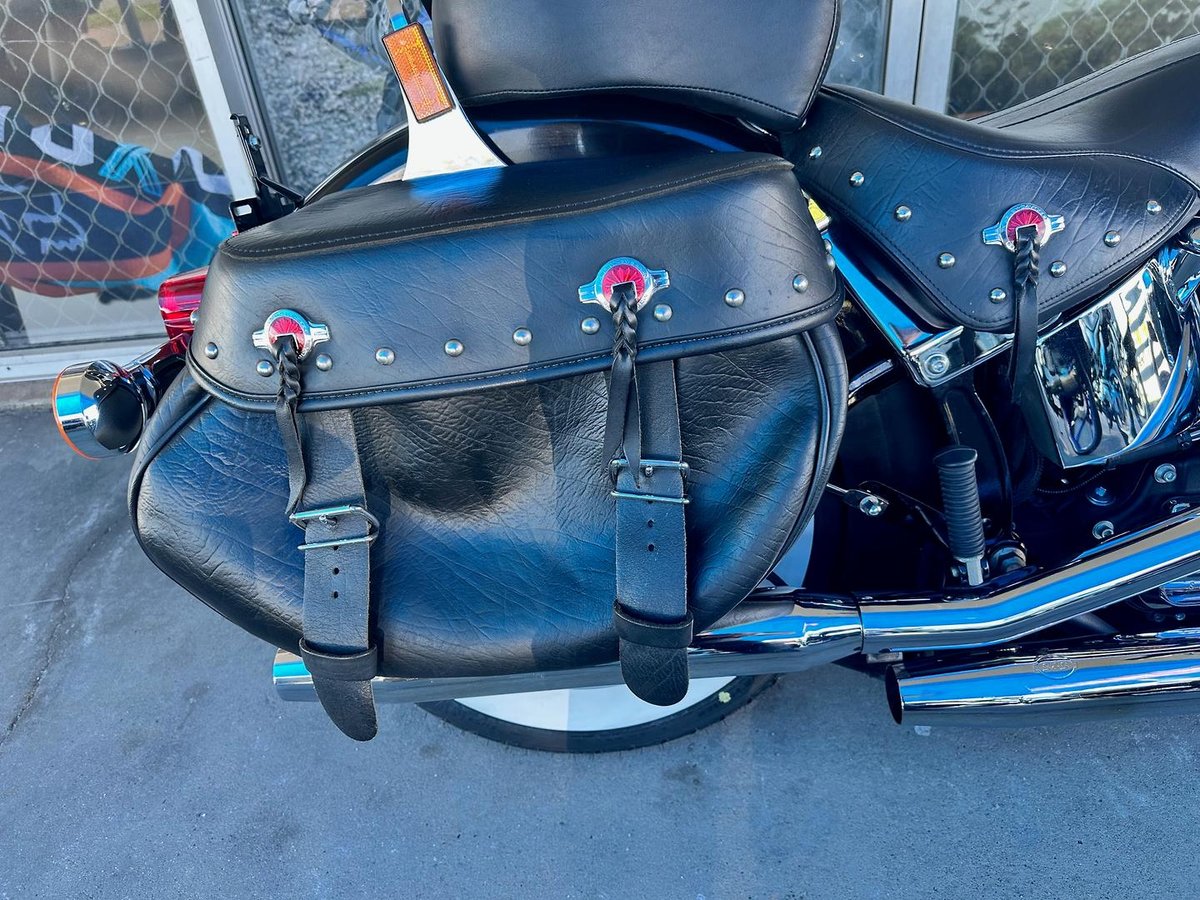

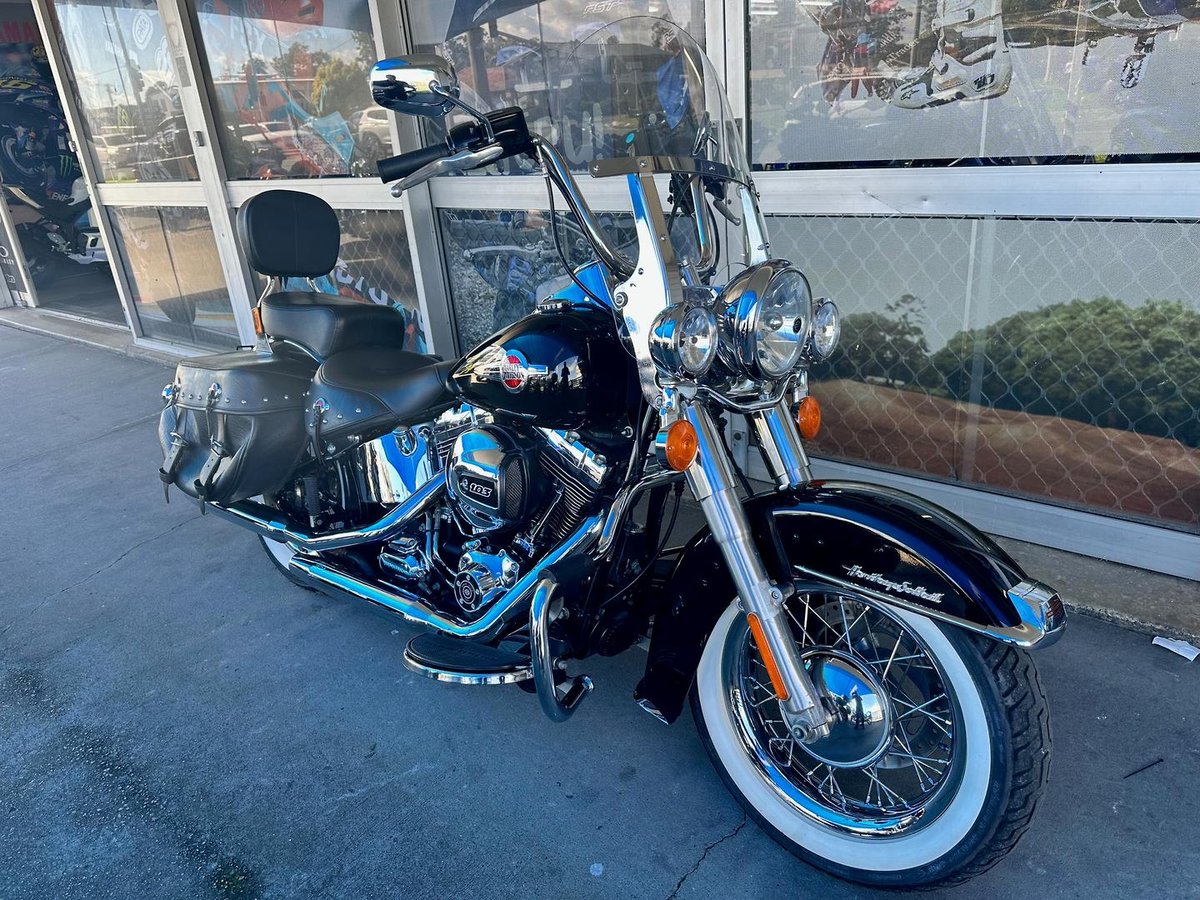

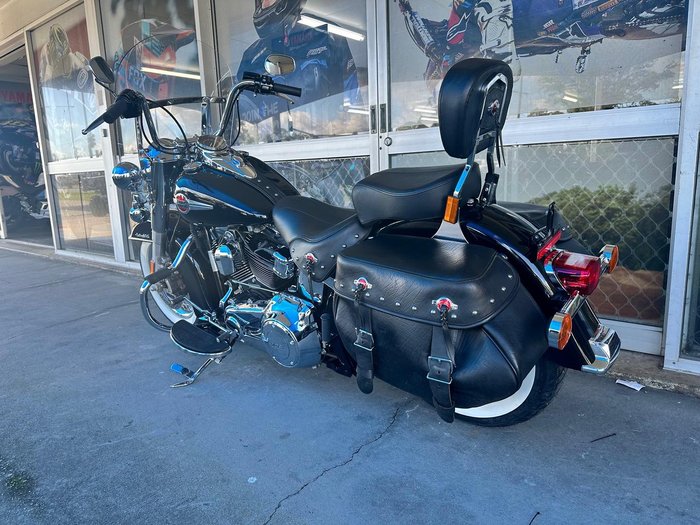

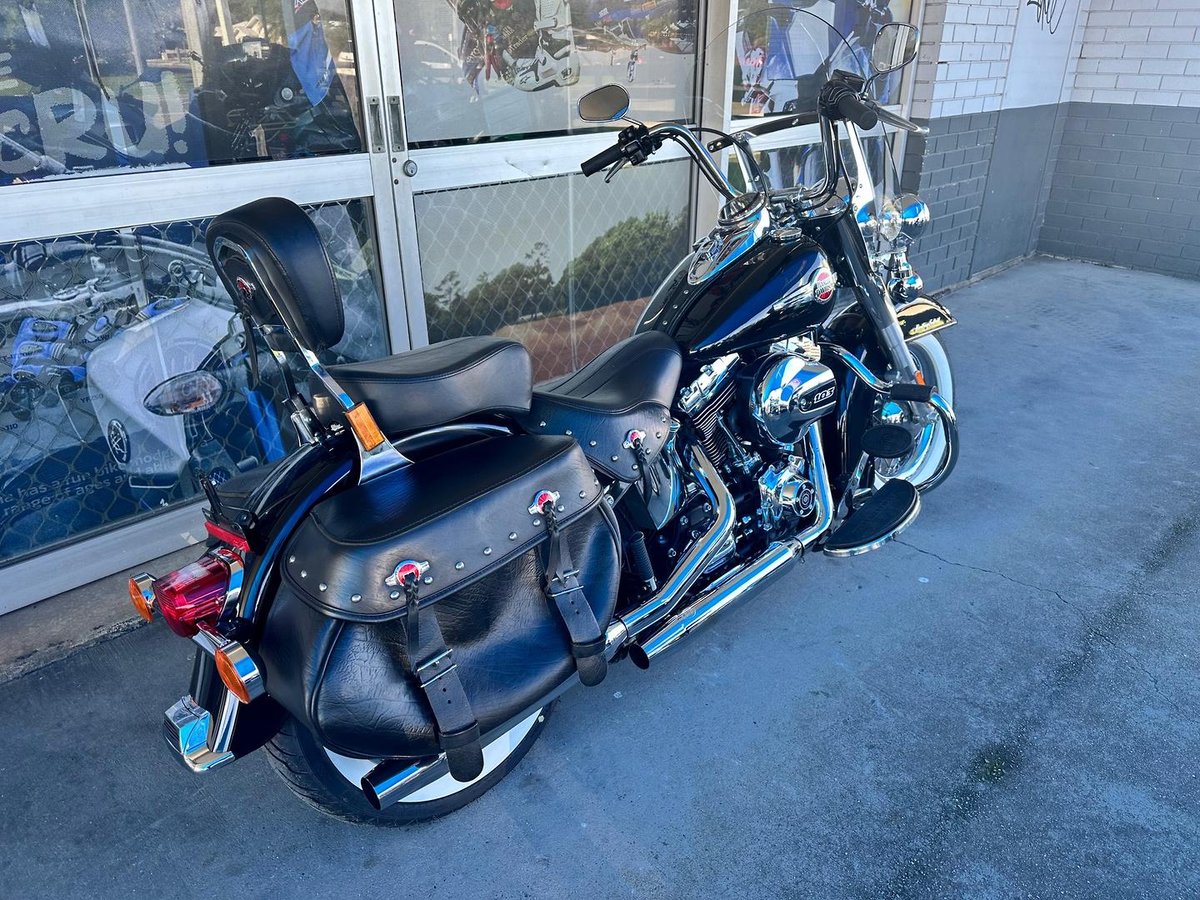

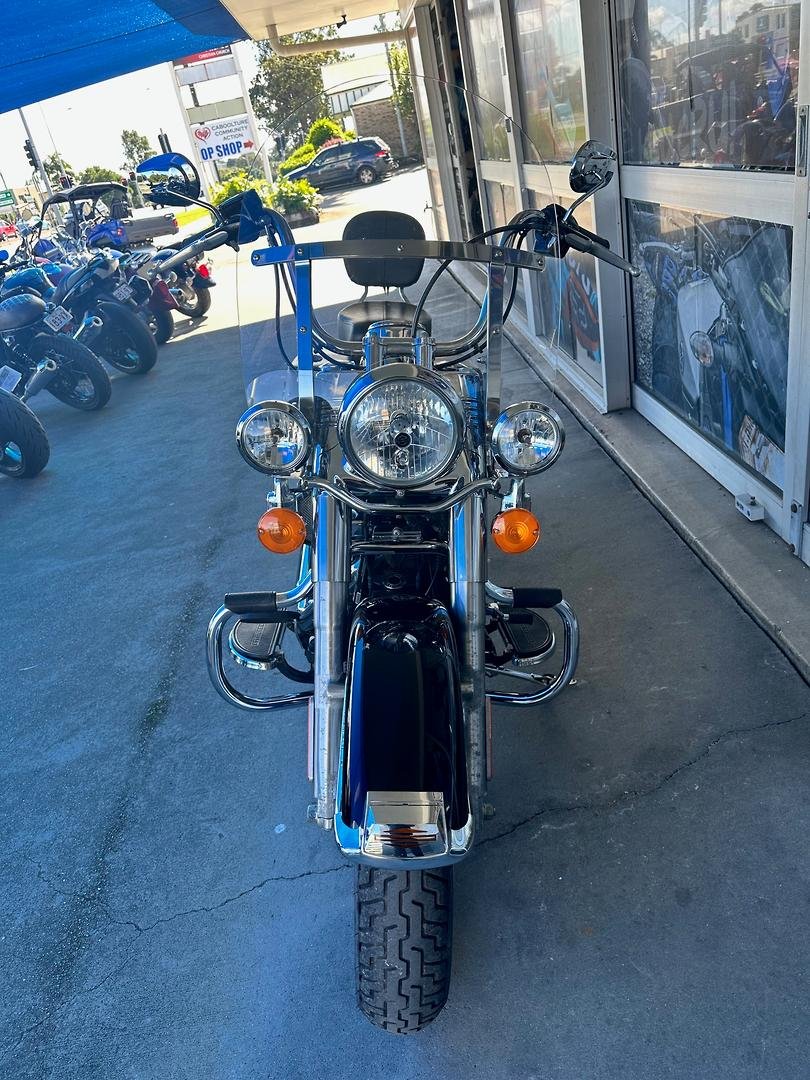

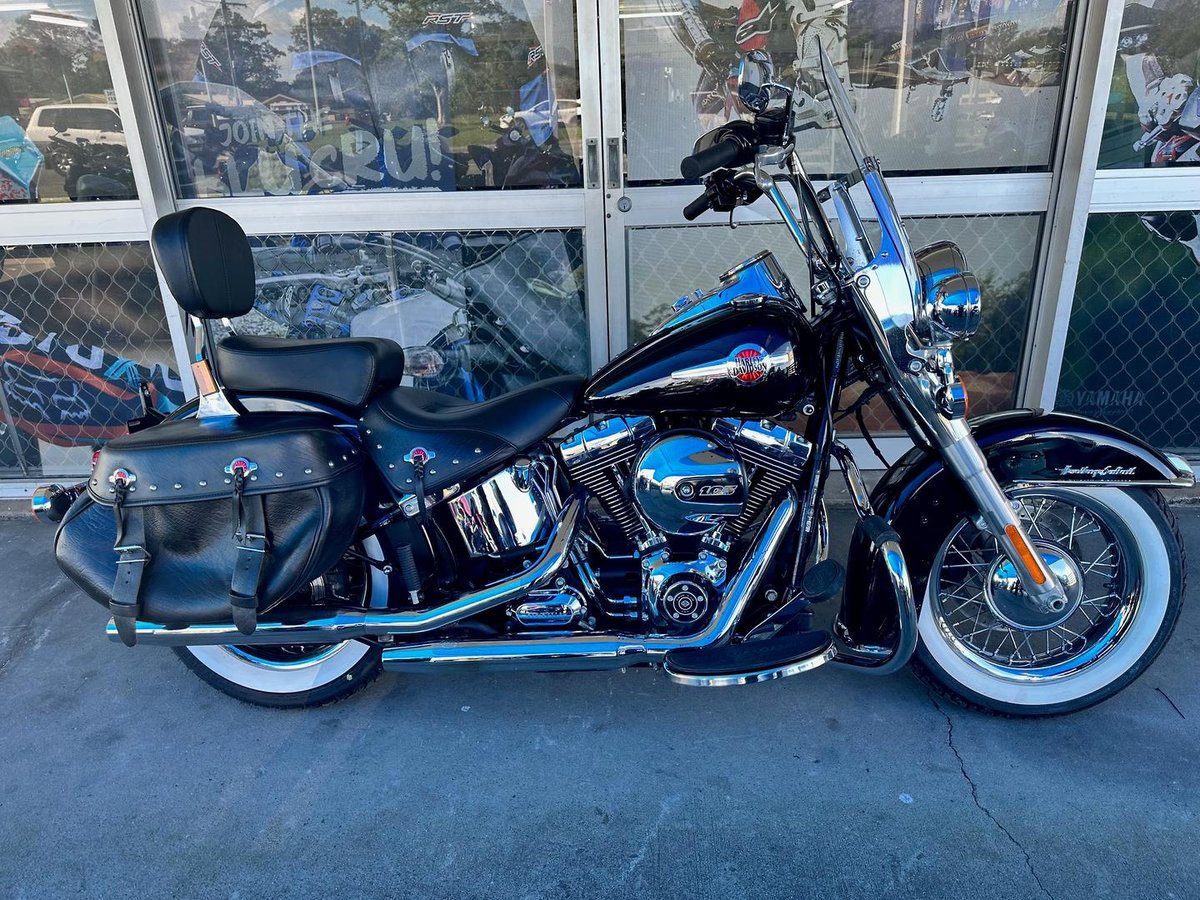

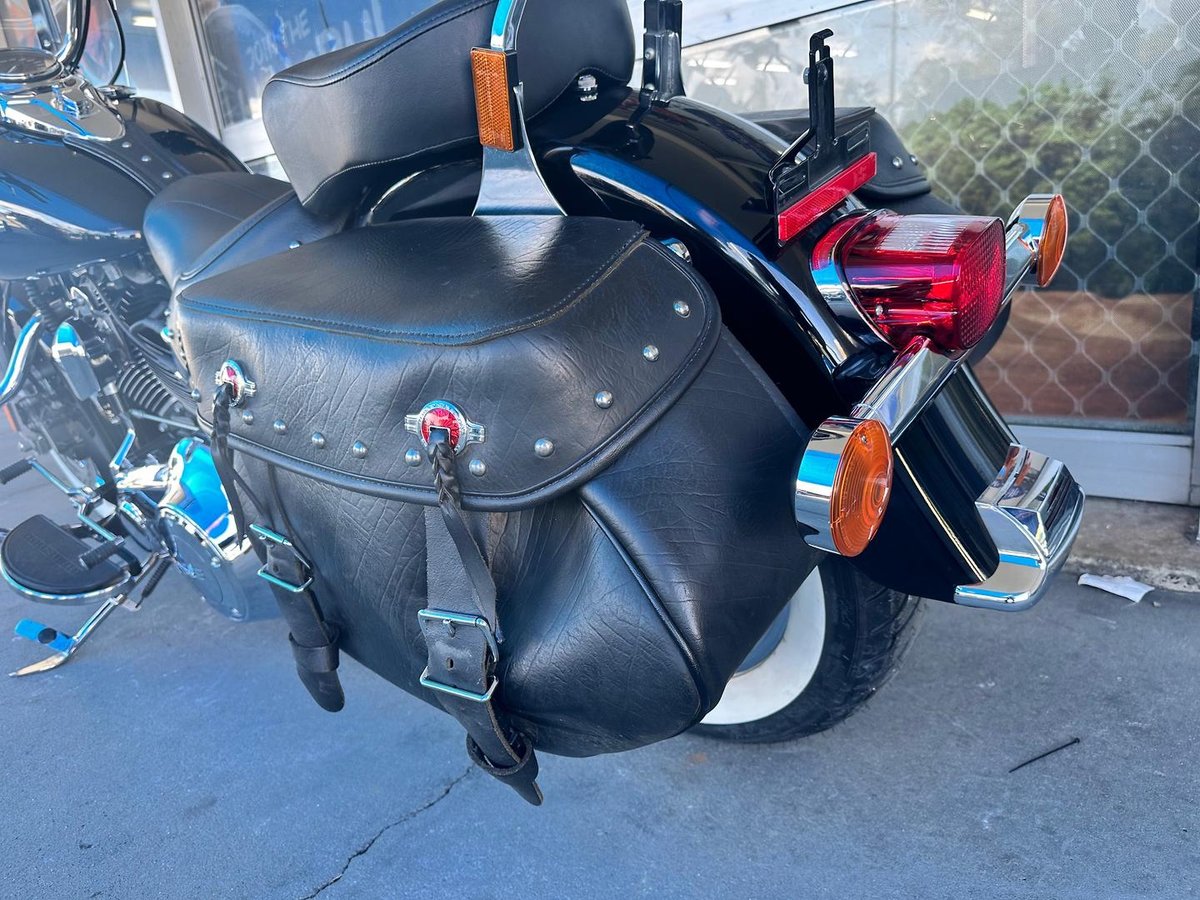

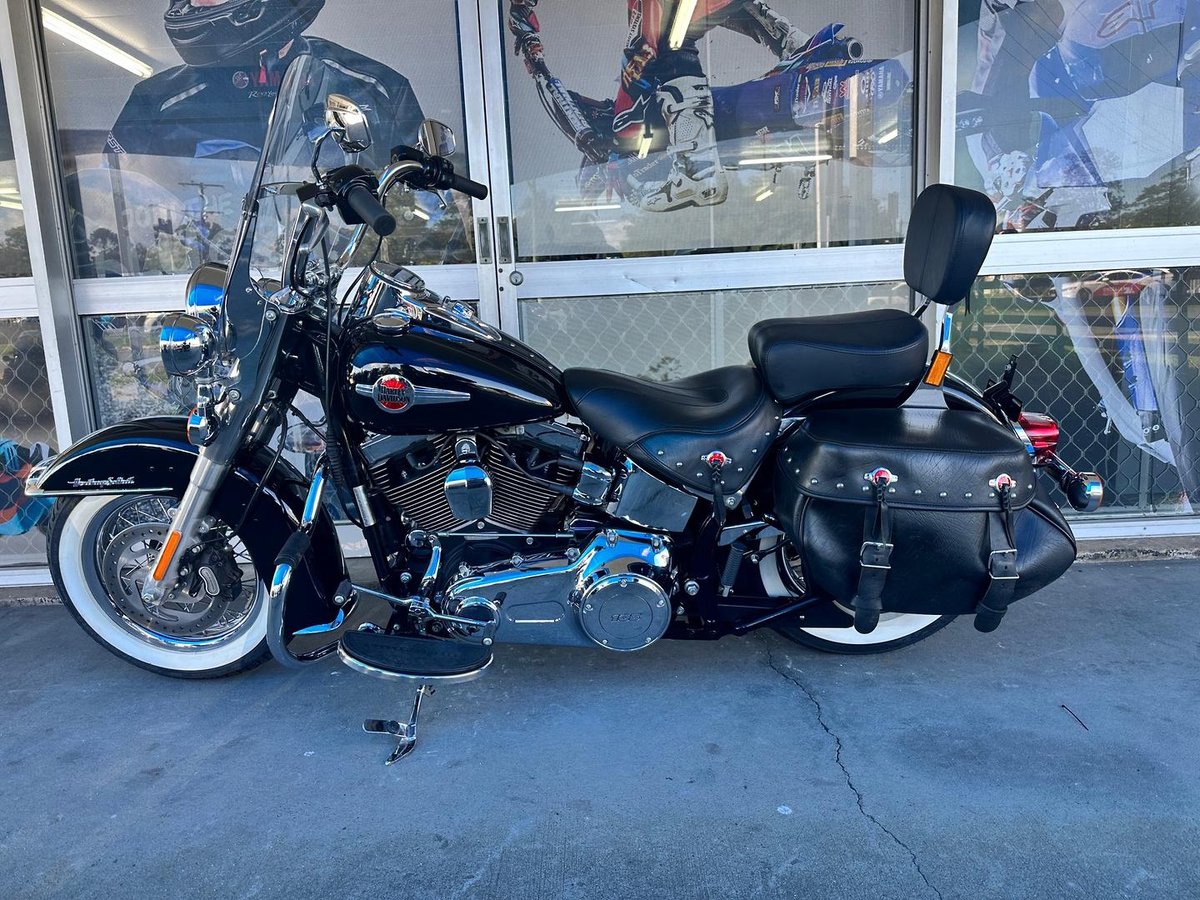

2017 Harley-Davidson Heritage Softail Classic 1690 (flstc) Softail

Features

• EngineSize: 1690
• EngineType: Piston
• FuelCapacity: 18.9
• FuelType: Petrol
• LAMS Approved: False
• Vehicle Class: Touring (1101 - 10000cc)
• Engine Config: V-Twin
• Engine Stroke: 4
• Bore: 98.4mm
• Stroke: 111.1mm
• Cam Type: OHV (Over Head Valves)
• Valves Per Cylinder: 2
• Compression Ratio: 9.6:1
• Induction System: Aspirated
• Carburettor: ESPFI - Electronic Sequential Port Fuel Injection; ETC (Electronic Throttle Control)
• Cooling: Air

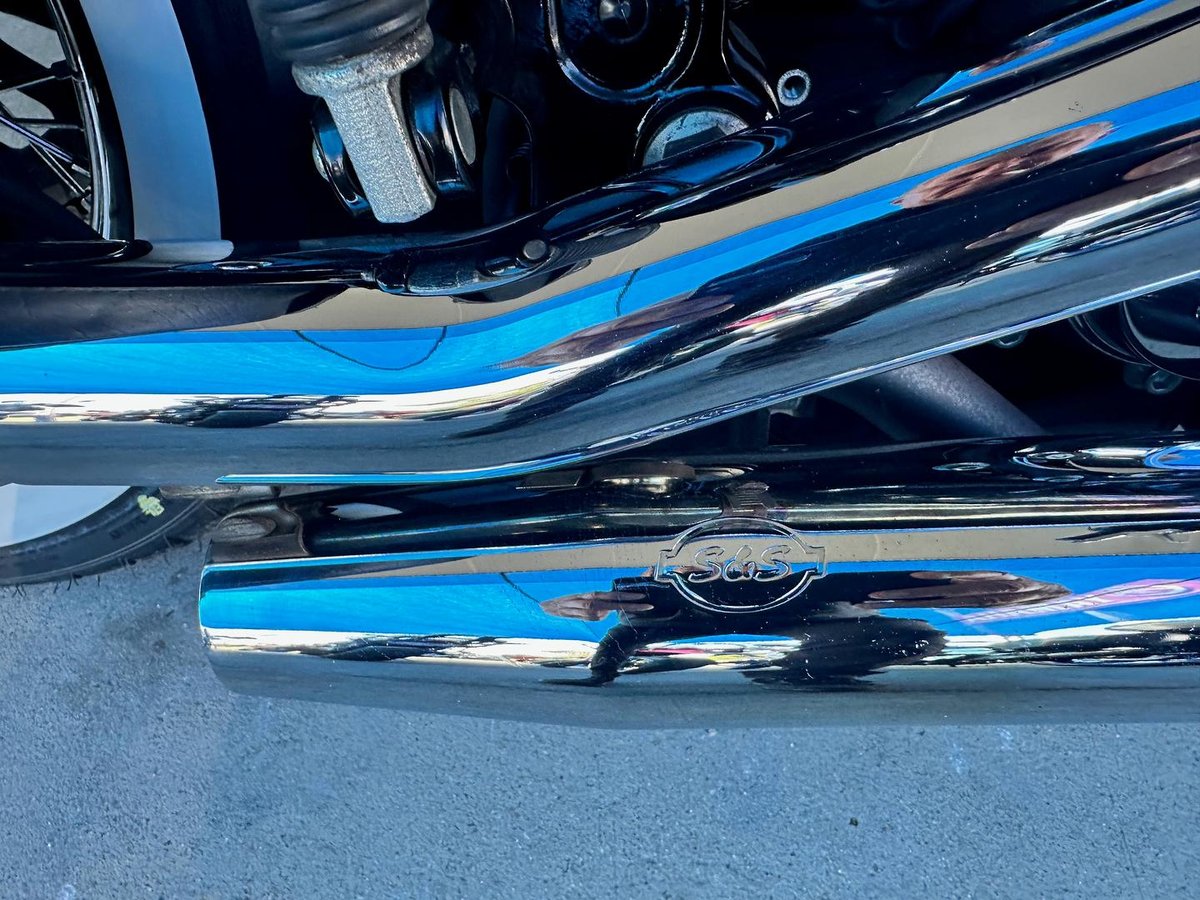

• Exhaust Description: Chrome, staggered shorty system; Twin mufflers
• Maximum Torque: 130.00Nm
• Maximum Torque RPM: 2750
• Starter: Electric
• Engine Voltage: 12Volt
• Charging Method: Engine
• Recommended RON: 95
• Gear Change Method: Left foot pedal; Heel & Toe Shift
• Clutch Type: Wet, Multi-disc
• Chassis Description: Black; Tubular; Rectangular section backbone; stamped, cast & forged junctions; forged fender supports; MIG welded
• Side Stand: Standard
• Front Suspension: 41.3 mm telescopic fork, “beer can” covers
• Front Suspension Travel: 130.0mm
• Rear Suspension: Twin, Undermounted hidden, horizontally mounted shock absorbers
• Rear Suspension Travel: 109.0mm
• Swingarm Type: Dual sided; Triangulated
• Front Brake Description: Single disc, Fixed caliper; Hydraulic, ABS
• Front Brake Caliper(s): Four Piston
• Front Brake Diameter: 292.0mm
• Rear Brake Description: Single disc, Hydraulic, ABS
• Rear Brake Caliper(s): Double Piston
• Rear Brake Diameter: 300.0mm
• ABS: Standard
• Linked Braking System: Not Available

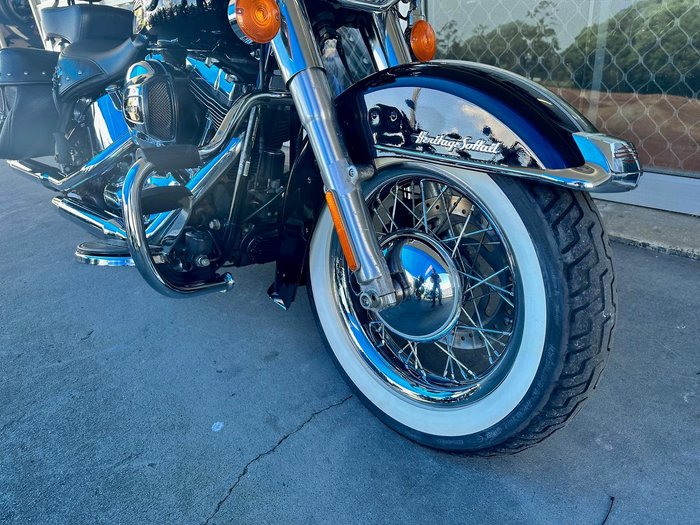

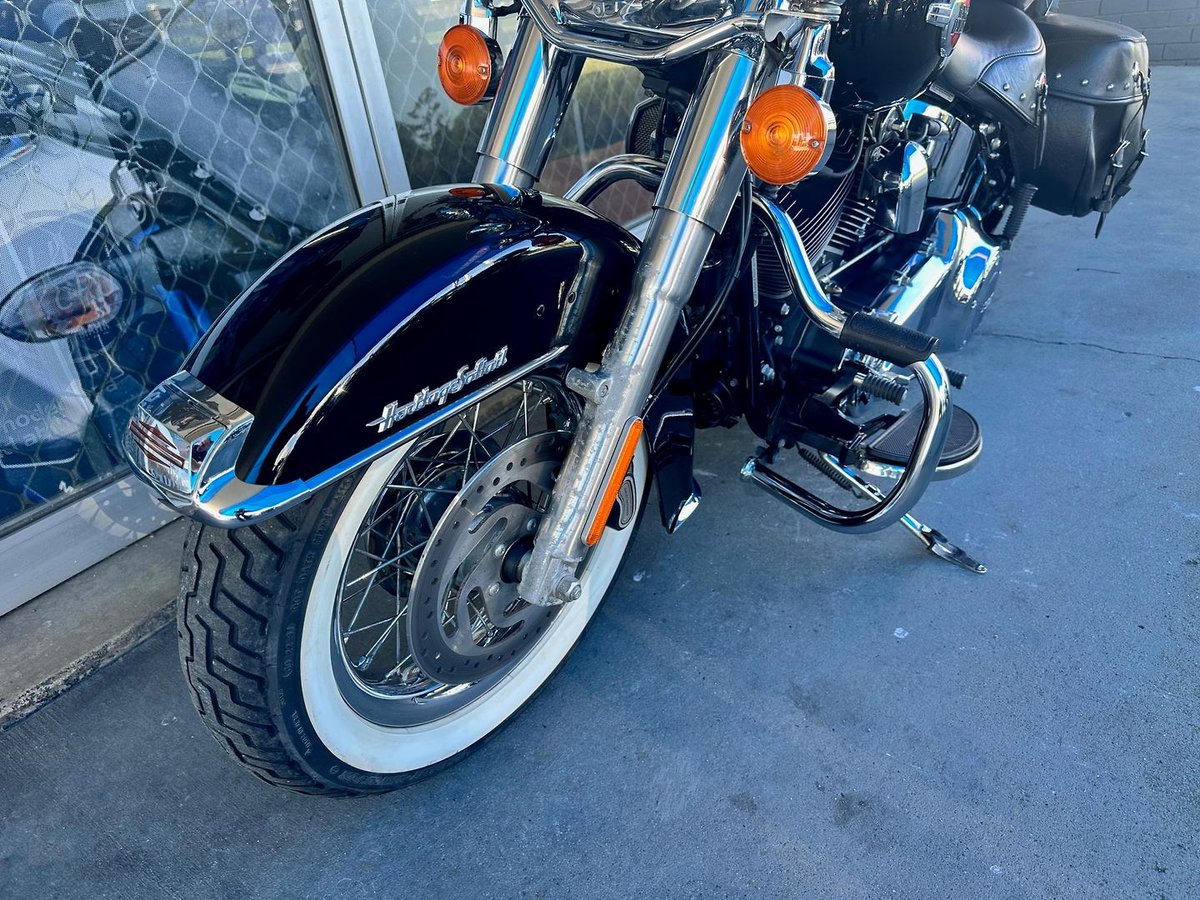

• Wheel Type: Chrome rims; Laced-spokes
• Wheel Size Front: 3.0x16" (76.2x406.4mm)
• Wheel Size Rear: 3.0x16" (76.2x406.4mm)
• Rear Tyre: 150/80B-16" (71H) Dunlop D402 Harley-Davidson Series Wide Wall
• Front Tyre: MT90B-16" (72H) Dunlop D402F Harley-Davidson Series Wide Wall
• Length: 2405mm
• Width: 955mm
• Height: 1408mm
• Wheelbase: 1635mm
• Wet / Operational Weight: 347.00kg
• Seat Height: 690mm
• Seating Capacity: 2
• Traction Control: Not Available
• Lock Type: Fork Lock with Key (Steering Stem)

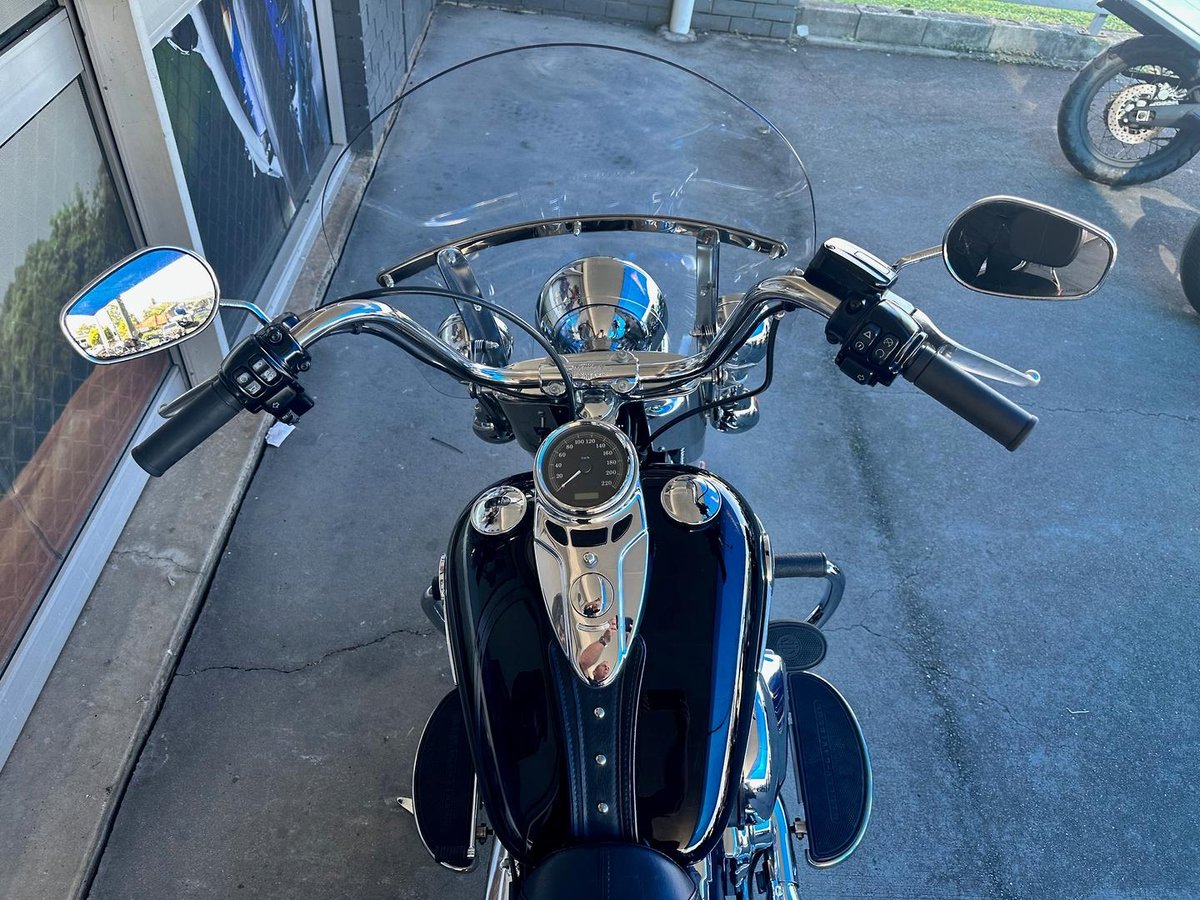

• Instruments / Dash Description: Tank-mounted electronic speedometer/odometer, clock; 2 x trip meters, RPM/gear display, fuel gauge with low fuel warning light & countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, 6-speed indicator light; High beam, front fender running lights, neutral, low oil pressure, turn signals, engine diagnostics, security system, ABS, cruise control
• Windscreen: Standard

_{Please confirm all features with dealer.}
