YZ450F
Yamaha YZ450F for Sale at Caboolture Yamaha in Caboolture, QLD | Specifications and Review Information
The ultimate 450 raises the bar even higher. Building on its best-in-class performance, the 2024 YZ450F boasts exceptional power and sharp handling in a compact, lightweight package that makes fast riders even faster.
Featuring a reversed cylinder head layout, forged aluminum piston, titanium valves, lightened crank assembly and dry sump lubrication, the YZ450F's advanced DOHC four-stroke engine is light, compact and world renowned for its incredibly broad pulling power across the entire rev range.
And like having factory team support in your pocket, Yamaha's groundbreaking Power Tuner App allows owners to adjust air/fuel mixture and ignition timing to tune engine performance for track conditions, record race log information and monitor a range of data such as maintenance and system diagnosis, engine run time and more.

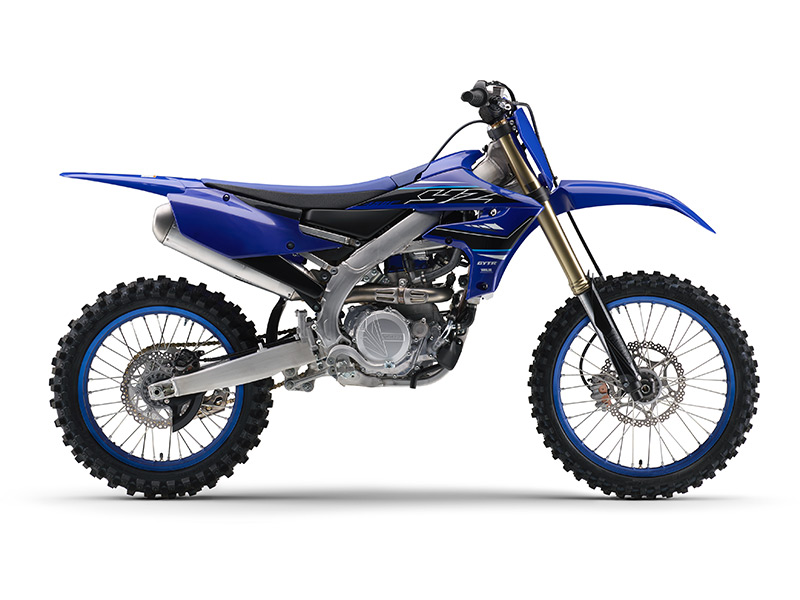

Yamaha YZ450F Team Yamaha Blue
HIGH PERFORMANCE BRAKING SYSTEM
A large 270mm front brake rotor is coupled with a Nissin caliper to provide excellent braking performance. Out back, rear brake feel is improved by reducing the rigidity of the brake hose providing a wider range of control at the pedal.
COMPACT FIVE-SPEED TRANSMISSION
Tri-shaft transmission layout vertically stacks the transmission shafts, raising the centre shaft and forming a triangle between the crank, drive shaft and main shaft for a lighter, more compact transmission.
RACE-WINNING DETAILS
The YZ450F boasts a wide range of top-spec details including aluminium tapered handlebars, compact PVC handlebar pad, lightweight throttle cable, wide footpegs with lightweight aluminium alloy brackets, a quick-adjust clutch perch and seamless seat.
STRONG, LIGHTWEIGHT WHEELS
Careful computer-aided design of each wheel's cross-sectional profile shaves weight without sacrificing durability. The YZ450F's rear wheel comes laced with a three-cross-spoke pattern for improved impact absorption and rider feel.
CLASS-LEADING SUSPENSION
The precisely tuned aluminium bilateral beam frame provides just the right amount of strength and flex for the perfect balance of stability and cornering performance. The result is a better handling machine with lighter feel, more agility and increased traction allowing the rider to enter corners with greater confidence and more line choices.
OPTIMISED AIR INTAKE
Optimised intake path draws air from under the side covers and seat allowing for a lighter, slimmer and more compact shroud area. The airbox cover sits low and is narrow, surrounded by the slim radiator shrouds.
LIGHTWEIGHT ALUMINIUM BEAM FRAME
The precisely tuned aluminium bilateral beam frame provides just the right amount of strength and flex for the perfect balance of stability and cornering performance. The result is a better handling machine with lighter feel, more agility and increased traction allowing the rider to enter corners with greater confidence and more line choices.
EASY-TO-USE POWER TUNER APP
Like having factory team support in your pocket, Yamaha's groundbreaking Power Tuner App allows owners to adjust air/fuel mixture and ignition timing to tune engine performance for track conditions, record race log information and monitor a range of data such as maintenance and system diagnosis, engine run time and more. Features include an intuitive "Simple Tuning" slide bar for quick engine mapping adjustments, Traction and Launch Control tuning, lap timer, along with helpful engine and suspension tuning guides. Best of all, it's free-of-charge.
POWERFUL 450CC ENGINE
Featuring a reversed cylinder head layout, forged aluminium piston, titanium valves, lightened crank assembly and dry sump lubrication, the YZ450F's advanced DOHC four-stroke engine is light, compact and world renowned for its incredibly broad pulling power across the entire rev range.
Technical Specifications
Engine
Engine Type | Liquid-cooled 4-stroke, DOHC, 4-valve |
---|---|
Displacement (cc) | 450.0 |
Bore x Stroke (mm) | 97.0 × 60.8 |
Compression Ratio | 13.0 : 1 |
Lubrication System | Dry sump |
Fuel Management | Fuel Injection |
Ignition | TCI |
Starter System | Electric |
Fuel Tank Capacity (L) | 6.2 |
Final Transmission | Chain |
Transmission | Constant mesh, 5-speed |
Chassis
Frame Type | Bilateral Beam |
---|---|
Suspension Front | Telescopic forks, 310mm travel |
Suspension Rear | Swingarm (link suspension), 315mm travel |
Brakes Front | Hydraulic single disc, 270 mm |
Brakes Rear | Hydraulic single disc, 240 mm |
Tyres Front | 80/100-21 Dunlop Geomax MX33F |
Tyres Rear | 120/80-19 Dunlop Geomax MX33 |
Dimensions
Length (mm) | 2180 |
---|---|
Width (mm) | 825 |
Height (mm) | 1275 |
Seat Height (mm) | 965 |
Wheelbase (mm) | 1480 |
Ground Clearance (mm) | 350 |
Wet Weight (kg) | 109 |
