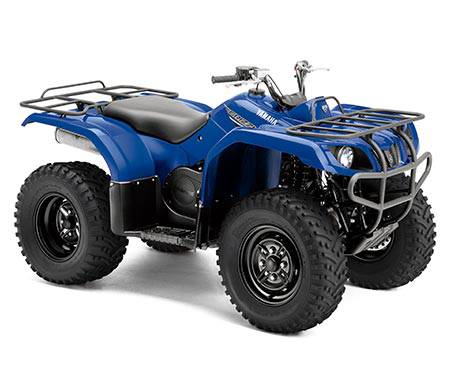

GRIZZLY 350 4WD
Yamaha Grizzly 350 4WD for Sale at Caboolture Yamaha in Caboolture, QLD | Specifications and Review Information
Full-sized 4x4, full-sized capability, in an affordable package - that's Grizzly 350. Under the bonnet, you'll find none other than Yamaha's proven and trusted 348cc air-/oil-cooled 4-stroke single, famous for its toughness and robust build quality. It transmits its power through Yamaha's legendary Ultramatic® V-belt transmission and uses On-Command® switching to flick from light steering 2WD to go anywhere 4WD at the push of a button. Grizzly 350 4WD has the full-featured list of appointments and capabilities, the peace of mind of famous Yamaha build quality, and a highly competitive price.
Grizzly 350 2X4 - Need the extra torque and pulling/carrying performance of a middleweight but don't need the full traction of 4WD? With the same high-level Ultramatic® tranny, suspension and brakes, you'll be hard pressed to find more grunt in this capacity.
All Yamaha Utility ATV and ROV now come with 3 year factory warranty.
Rider safety is our priority. This ATV should only be ridden by riders aged 16 years and older.

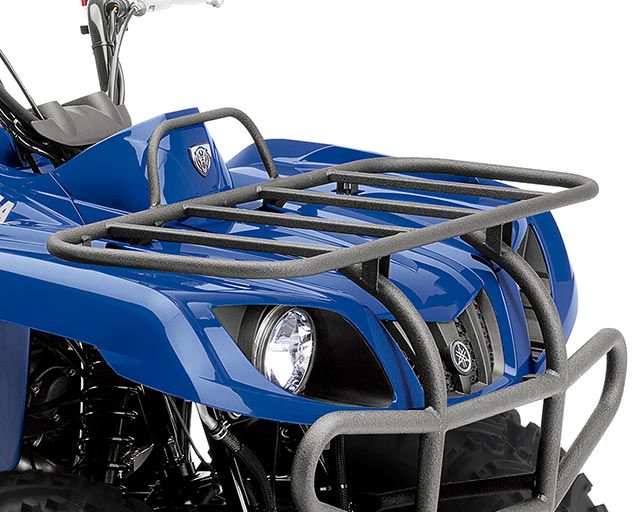

120kg Capacity Cargo Racks
Rugged, large-diameter steel cargo racks with durable wrinkle paint finish can pack a total of 120kg combined 40kg at the front and 80kg at the rear.
348cc Air-Oil-Cooled 4-Stroke Engine
The power-packed, full-featured Grizzly 350 Automatic 4x4 solid axle carries a lot of advanced Yamaha ATV technology in an affordable package. Its rugged and reliable 348cc air-/oil-cooled, SOHC four-stroke single produces stump-pulling bottom-end power and loves to rev.
Fuel-Efficient and Low Maintenance
Semi-oval slide 33mm Mikuni® carburettor and high-output DC-CDI ignition deliver excellent throttle response and engine performance at all rpm. Automatic cam chain tensioner reduces engine maintenance. Stainless steel muffler and header design provides superior power characteristics, exhaust sound and unmatched durability.
Front and Rear Suspension Package
The front suspension system an independent double wishbone with a 5-position preload adjustment shock absorber with a 160mm stroke. The rear suspension system features a robust swingarm, five position preload adjustable shock absorber with a 180mm stroke.
On-Command® 2WD 4WD drive
Simply swap from two-wheel drive to four-wheel drive at the touch of a button.
Fully Automatic Ultramatic® Transmission
Grizzly's Ultramatic® transmission features a gated shifter, dual-range (Hi/Lo) drive plus reverse gear, and is the most advanced - and durable - CVT drive system available. An automatic centrifugal clutch maintains constant belt tension for reduced belt wear and a sprag clutch delivers natural all-wheel engine braking. Fully sealed drive case keeps out water and debris to minimise belt slippage, and a no-tools side cover drain makes it a snap to get rid of what little does sneak in.
500kg Towing Capacity
Despite its small stature the Grizzly 350 can haul an impressive 500kg.
Sealed Drum Brake
The Grizzly 350 rear sealed drum brake reduces maintenance by keeping out dirt and debris that causes premature wear.
|Engine Type||Air-cooled, 4-stroke, SOHC, 2 valve, single cylinder|
|Bore x Stroke (mm)||83.0 x 64.5|
|Compression Ratio||9.2 : 1|
|Lubrication System||Wet sump|
|Fuel Management||BSR33 x 1|
|Ignition||DC - CDI|
|Fuel Tank Capacity (L)||13.5|
|Transmission||Ultramatic® V-belt with all-wheel engine braking; H, L, N, R, P|
|Frame Type||Steel tube|
|Suspension Front||Independent double wishbone, 160mm travel|
|Suspension Rear||Swingarm, 180mm travel|
|Brakes Front||Hydraulic dual discs|
|Tyres Front||AT25 × 8-12|
|Tyres Rear||AT25 × 10-12|
|Seat Height (mm)||827|
|Ground Clearance (mm)||245|
|Wet Weight (kg)||255|
