Bolt R-Spec

Yamaha Bolt R-Spec for Sale at Caboolture Yamaha in Caboolture, QLD | Specifications and Review Information
Bolt R-Spec is a bobber-styled ride that encapsulates the stripped back look wrapped around a pulsating V-twin.
Compact and stylish with a low seat height, this Bolt delivers a refined and agile ride while retaining the character that is a critical part of owning such an individual machine. Yamaha's flat line style and use of exposed metal components accentuates the bike's pure simplicity while the V-twin motor provides spirited performance and unquestioned reliability.
The stripped back Bolt also provides a perfect entry into the world of customisation.
Bolt is everything you need and nothing you don't.
Raven

942CC V-TWIN

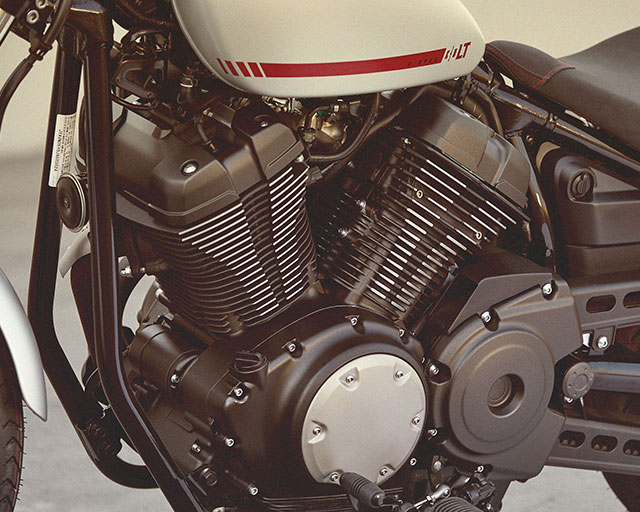

The 60° V-twin 942cc air-cooled engine, along with a pent-roof shaped combustion chamber and 9.0:1 compression ratio produces excellent power and superior low-end torque.

MAKE IT YOUR OWN
The options for the Bolt are limited only by the owner's imagination. And as the perfect canvas for customisation, Bolt is the ultimate example of that philosophy.

MODERN INSTRUMENTATION
A round, smoked-lens LCD digital speedometer adds to the modern take on the traditional bobber style.

PIGGY BACK REAR SHOCKS
The beefy front 41mm fork tubes offer excellent suspension performance and the twin 'piggy back' rear shocks, have been tuned to provide great comfort and handling while contributing to the machine's low profile.

2 INTO 1 EXHAUST
The minimalist-style 2-into-1 exhaust pipe layout contributes to a lively performance and styling of the machine while delivering a throaty and pleasing exhaust note.

POWERFUL BRAKES
The 298mm front disc brake and 298mm rear disc brake both use wave rotors, the style usually found on sport bikes. The front brake uses a floating-mount for great heat-distortion resistance, contributing to excellent braking performance.
Technical Specifications
Engine
Engine Type | Air-cooled, 4-stroke, SOHC, 4-valve, V-twin |
---|---|
Displacement (cc) | 942.0 |
Bore x Stroke (mm) | 85.0 x 83.0 |
Compression Ratio | 9.0 : 1 |
Lubrication System | Wet sump |
Fuel Management | Fuel Injection |
Ignition | TCI |
Starter System | Electric |
Fuel Tank Capacity (L) | 12.0 |
Final Transmission | Belt |
Transmission | Constant mesh 5-speed |
Chassis
Frame Type | Double Cradle |
---|---|
Suspension Front | Telescopic forks, 120mm travel |
Suspension Rear | Swingarm, 70mm travel |
Brakes Front | Hydraulic single disc, 298mm |
Brakes Rear | Hydraulic single disc, 298mm |
Tyres Front | 100/90-19M/C 57H Tubeless |
Tyres Rear | 150/80 B16M/C 71H Tubeless |
Dimensions
Length (mm) | 2290 |
---|---|
Width (mm) | 830 |
Height (mm) | 1120 |
Seat Height (mm) | 690 |
Wheelbase (mm) | 1570 |
Ground Clearance (mm) | 130 |
Wet Weight (kg) | 247 |
